Channels :220 GNSS
Satellites Tracked
GPS: Simultaneous L1C/A, L2C, L2E, L5
GLONASS: Simultaneous Ll C/A, LIP, L2 C/A, L2P,L3
SBAS: Simultaneous LI C/A, L5
GALILEO Simultaneous El, E5A, E5B(reserved)
COMPASS: Bl (QPSK), Bl- MBOC (6,1, 1/11), BI-2 (QPSK), B2 (QPSK),
B2-BOC (10,5), B3 (QPSK),B3BOC(15,2,5),l5(QPSK)
QZSS: Ll C/A, Ll SAIF, L2C, L5
Position Rate: Up to 50 Hz
Signal Reacquisition: < 1 sec
RTK Signal Initialization: Typically < 10 s
Hot Start: Typically < 15 s
Initialization Reliability: > 99.9 %
Internal Memory: 4 GB (Over 45 days of raw static data storage with
recording sample every 1 second)
Micro SD Card: Expansion slot with 4 GB internal memory (32 GB
optional)
POSITIONING
HIGH PRECISION STATIC SURVEYING (Lon Time Observations) Horizontal:
2.5 mm + 0.1 ppm RMS
Vertical: 3.5 mm + 0.4 ppm RMS
FAST STATIC
Horizontal: 3 mm + 0.5 ppm RMS
Vertical: 5 mm + 0.5 ppm RMS
CODE DIFFERENTIAL POSITIONING Horizontal: 0.25 mm + 1 ppm RMS
Vertical: 0.45 mm + 1ppm RMS
SBARS POSITIONING(Typical) Horizontal: 0.5 m RMS²
Vertical: 0.8 RMS²
REAL TIME KINEMATIC(<30km)-NETWORK SURVEYING³ Fixed RTK
Horizontal: 8mm +0.8ppm RMS
Fixed RTK Vertical: 15mm + 1ppm RMS

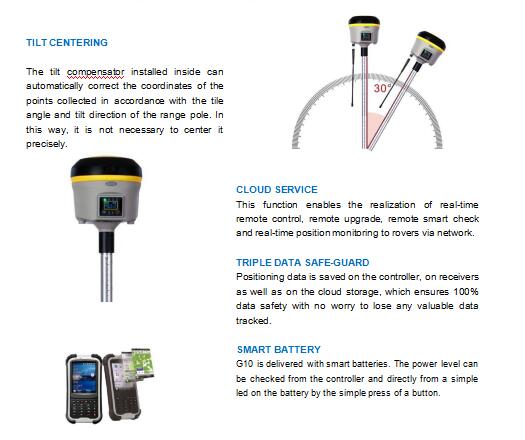

TILTED POSITINING(2m POLE) 10°inclination 20 mm RMS
20°inclination 30 mm RMS 30°inclination 50 mm RMS
COMMUNICATION
Connectors I/O
7-pins Lemo and 5-pins Lemo Interfaces. Multifunction cable with
USB interfaces for PC connection.
Bluetooth device: 2.4 GHz class Il
Wi-Fi: IEEE 802.11 b/g/n
Web UI: To upgrade the software, manage the status and settings,
data download, etc. via smart phone, tablet or other internet
enabled
electronic device
Navigation outputs: ASCII (NMEA-0183) GSV, AVR, RMC, HDT, VGK, VHD,
ROT, GGK, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, Reference
outputs: CMR, CMR+, sCMRx, RTCM2.1, RTCM2.3 RTCM3.O, RTCM3.1,GRS,
GBS.
INTEGRATED GNSS ANTENNA
High accuracy four constellation micro-strip antenna, zero-phase
center with internal multipath suppressive board.
INTERNAL RADIO
Frequency Range: 410-470MHz
Channel Spacing: 12.5KHz/25 KHz
Rx/Tx Power:2W
Maximum Range: 3-4 Km in urban environment, up to 10 Km with
optimal conditions.
Protocol: Transparent EOT/EOC/FST, SATEL. South, TRIMTALX 11/11e,
TRIMMARK 3, TRIMTALK 450S
WIRELESS MODULE
Band: GSM/GPRS/EDGE: 850/900/1800/1900 MHz
WCDMA/HSDPA: 850/1900/2100 MHz
Output Power: GSM850, EGSM900: 33 dBm(2W)
GSM1800, PCS1900: 30 dBm(1W), WCDMA: 24 dBm
POWER SUPPLY
Battery: Rechargeable and replaceable 11.1 V -3400 -37.74Wh
intelligent lithium battery
Voltage: 9 to 22 V DC external power input
Working Time in Static ( GPS+GLONASS):12hours
Working Time in GSM RTK( GPS+GLONASS):6.5hours
Charge Time(2batteries):Typically 4hours
Power Consumption:<6w
PHYSICAL SPECIFICATION
Size: Φ14cm×14.4cm H
Operating Temperature: -40℃to 65℃ (-22℉to149℉)
Storage Temperature: -40℃to 85℃ (-40℉to185℉)
Operating Temperature with UHF UHF Radio: -30℃to 50℃
Waterproof/ Dustproof: IP67
s Shock Resistance: Designed to endure to a 2 m pole drop on
concrete floor with no damage. Designed to endure a 1 m free drop
on
hardwood floor with no damage
s Vibration : Vibration resistan
